GaSb - Gallium Antimonide
Wafer Technology offers single crystals that are grown by a modified version of the liquid encapsulated Czochralski method from directionally frozen polycrystalline ingot.


Mechanical Specifications
Gallium Antimonide can be supplied as ingots or ingot sections or as-cut, etched or polished wafers. All Gallium Antimonide wafers are individually laser scribed with ingot and slice identity to ensure perfect traceability.

Packaging

Polished Wafers
Fluoroware type tray, individually sealed in two outer bags in inert atmosphere.

As-cut Wafers
Fluroware type tray or glassine bag.

‘Process Trial’ wafers
Fluoroware tray,
individually sealed in one outer bag.


If you do not see the specification you require,
please ask for details

PDF logo
Download
PDF datasheet
Acrobat logo

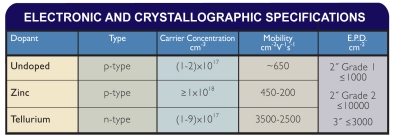

Tighter electrical ranges are available on request
